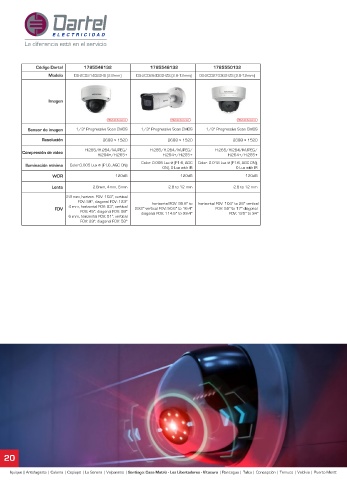

Page 20 - Catalogo Dartel Electricidad - Hikvision

Código Dartel 1785546132 1785548132 1785550132
Modelo DS-2CD2143G2-IS (2.8mm) DS-2CD2643G2-IZS (2.8-12mm) DS-2CD2743G2-IZS (2.8-12mm)

Imagen

Hikvision Acusense Hikvision Acusense Hikvision Acusense
Sensor de imagen 1/3" Progressive Scan CMOS 1/3" Progressive Scan CMOS 1/3" Progressive Scan CMOS
Resolución 2688 × 1520 2688 × 1520 2688 × 1520

Compresión de video H.265/H.264/MJPEG/ H.265/H.264/MJPEG/ H.265/H.264/MJPEG/
H.264+/H.265+ H.264+/H.265+ H.264+/H.265+
Iluminación mínima Color:0.005 Lux @ (F1.6, AGC ON) Color: 0.005 Lux @ (F1.6, AGC Color: 0.018 Lux @ (F1.6, AGC ON),
ON), 0 Lux with IR
0 Lux with IR
WDR 120dB 120dB 120dB
Lente 2.8mm, 4mm, 6mm 2.8 to 12 mm 2.8 to 12 mm

2.8 mm, horizon. FOV: 103°, vertical
FOV: 58°, diagonal FOV: 123° horizontal FOV: 95.8° to horizontal FOV: 104° to 29° vertical
FDV 4 mm, horizontal FOV: 83°, vertical 29.2° vertical FOV: 50.6° to 16.4° FOV: 55° to 17° diagonal
FOV: 45°, diagonal FOV: 99° diagonal FOV: 114.6° to 33.4° FOV: 125° to 34°
6 mm, horizontal FOV: 51°, vertical
FOV: 29°, diagonal FOV: 58°

20
