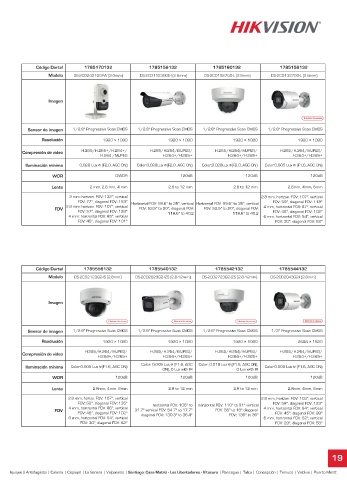

Page 19 - Catalogo Dartel Electricidad - Hikvision
P. 19
Código Dartel 1785170132 1785156132 1785160132 1785158132
Modelo DS-2CD2421G0-IW (2.0mm) DS-2CD1123G0E-I (2.8mm) DS-2CD1027G0-L (2.8mm) DS-2CD1327G0-L (2.8mm)
Imagen
Hikvision Acusense
Sensor de imagen 1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS
Resolución 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080
Compresión de video H.265/H.265+/H.264+/ H.265/H.264/MJPEG/ H.265/H.264/MJPEG/ H.265/H.264/MJPEG/
H.264 /MJPEG H.264+/H.265+ H.264+/H.265+ H.264+/H.265+
Iluminación mínima 0.028 Lux @ (F2.0, AGC ON) Color:0.028Lux @(F2.0, AGC ON) Color:0.028Lux @(F2.0, AGC ON) Color:0.005 Lux @ (F1.6, AGC ON)
WDR DWDR 120dB 120dB 120dB
Lente 2 mm, 2.8 mm, 4 mm 2.8 to 12 mm 2.8 to 12 mm 2.8mm, 4mm, 6mm
2 mm: horizon. FOV: 132°, vertical 2.8 mm, horizon. FOV: 107°, vertical
FOV: 77°, diagonal FOV: 153° Horizontal FOV: 99.6° to 35°, vertical Horizontal FOV: 99.6° to 35°, vertical FOV: 59°, diagonal FOV: 118°
FDV 2.8 mm: horizon. FOV: 107°, vertical FOV: 53.5° to 20°, diagonal FOV: FOV: 53.5° to 20°, diagonal FOV: 4 mm, horizontal FOV: 87°, vertical
FOV: 57°, diagonal FOV: 126° 118.6° to 40.2 118.6° to 40.2 FOV: 46°, diagonal FOV: 102°
4 mm: horizontal FOV: 85°, vertical 6 mm, horizontal FOV: 54°, vertical
FOV: 45°, diagonal FOV: 101° FOV: 30°, diagonal FOV: 62°
Código Dartel 1785556132 1785540132 1785542132 1785544132
Modelo DS-2CD2123G2-IS (2.8mm) DS-2CD2623G2-IZS (2.8-12mm) DS-2CD2723G2-IZS (2.8-12mm) DS-2CD2043G2-I (2.8mm)
Imagen
Hikvision Acusense Hikvision Acusense Hikvision Acusense Hikvision Acusense
Sensor de imagen 1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/2.8" Progressive Scan CMOS 1/3" Progressive Scan CMOS
Resolución 1920 × 1080 1920 × 1080 1920 × 1080 2688 × 1520
Compresión de video H.265/H.264/MJPEG/ H.265/H.264/MJPEG/ H.265/H.264/MJPEG/ H.265/H.264/MJPEG/
H.264+/H.265+ H.264+/H.265+ H.264+/H.265+ H.264+/H.265+
Iluminación mínima Color:0.005 Lux @(F1.6, AGC ON) Color: 0.005 Lux @ (F1.6, AGC Color: 0.018 Lux @ (F1.6, AGC ON), Color:0.005 Lux @ (F1.6, AGC ON)
ON), 0 Lux with IR 0 Lux with IR
WDR 120dB 120dB 120dB 120dB
Lente 2.8mm, 4mm, 6mm 2.8 to 12 mm 2.8 to 12 mm 2.8mm, 4mm, 6mm
2.8 mm, horizo. FOV: 107°, vertical 2.8 mm, horizon. FOV: 103°, vertical
FOV: 62°, diagonal FOV: 135° horizontal FOV: 106° to horizontal FOV: 110° to 31° vertical FOV: 58°, diagonal FOV: 123°
FDV 4 mm, horizontal FOV: 86°, vertical 31.7° vertical FOV: 54.7° to 17.7° FOV: 58° to 18° diagonal 4 mm, horizontal FOV: 84°, vertical
FOV: 46°, diagonal FOV: 102° diagonal FOV: 130.3° to 36.4° FOV: 136° to 36° FOV: 45°, diagonal FOV: 99°
6 mm, horizontal FOV: 54°, vertical 6 mm, horizontal FOV: 52°, vertical
FOV: 30°, diagonal FOV: 62° FOV: 29°, diagonal FOV: 58°
19
