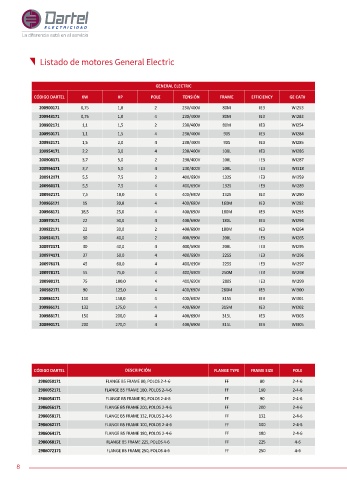

Page 8 - Brochure motores Dartel Electricidad
P. 8
GENERAL ELECTRIC
CÓDIGO DARTEL KW HP POLE TENSIÓN FRAME EFFICIENCY GE CAT#
200900171 0,75 1,0 2 230/400V 80M IE3 WI253
200948171 0,75 1,0 4 230/400V 80M IE3 WI283
200902171 1,1 1,5 2 230/400V 80M IE3 WI254
200950171 1,1 1,5 4 230/400V 90S IE3 WI284
200952171 1,5 2,0 4 230/400V 90S IE3 WI285
200954171 2,2 3,0 4 230/400V 100L IE3 WI286
200908171 3,7 5,0 2 230/400V 100L IE3 WI287
200956171 3,7 5,0 4 230/400V 100L IE3 WI318
200912171 5,5 7,5 2 400/690V 132S IE3 WI259
200960171 5,5 7,5 4 400/690V 132S IE3 WI289
200962171 7,5 10,0 4 400/690V 132S IE3 WI290
200966171 15 20,0 4 400/690V 160M IE3 WI292
200968171 18,5 25,0 4 400/690V 180M IE3 WI293
200970171 22 30,0 4 400/690V 180L IE3 WI294
200922171 22 30,0 2 400/690V 180M IE3 WI264
200924171 30 40,0 2 400/690V 200L IE3 WI265
200972171 30 40,0 4 400/690V 200L IE3 WI295
200974171 37 50,0 4 400/690V 225S IE3 WI296
200976171 45 60,0 4 400/690V 225S IE3 WI297
200978171 55 75,0 4 400/690V 250M IE3 WI298
200980171 75 100,0 4 400/690V 280S IE3 WI299
200982171 90 125,0 4 400/690V 280M IE3 WI300
200984171 110 150,0 4 400/690V 315S IE3 WI301
200986171 132 175,0 4 400/690V 315M IE3 WI302
200988171 150 200,0 4 400/690V 315L IE3 WI303
200990171 200 270,0 4 400/690V 315L IE3 WI305
CÓDIGO DARTEL DESCRIPCIÓN FLANGE TYPE FRAME SIZE POLE
2986050171 FLANGE B5 FRAME 80, POLOS 2-4-6 FF 80 2-4-6
2986052171 FLANGE B5 FRAME 160, POLOS 2-4-6 FF 160 2-4-6
2986054171 FLANGE B5 FRAME 90, POLOS 2-4-6 FF 90 2-4-6
2986056171 FLANGE B5 FRAME 200, POLOS 2-4-6 FF 200 2-4-6
2986058171 FLANGE B5 FRAME 132, POLOS 2-4-6 FF 132 2-4-6
2986062171 FLANGE B5 FRAME 100, POLOS 2-4-6 FF 100 2-4-6
2986064171 FLANGE B5 FRAME 180, POLOS 2-4-6 FF 180 2-4-6
2986068171 FLANGE B5 FRAME 225, POLOS 4-6 FF 225 4-6
2986072171 FLANGE B5 FRAME 250, POLOS 4-6 FF 250 4-6
8
